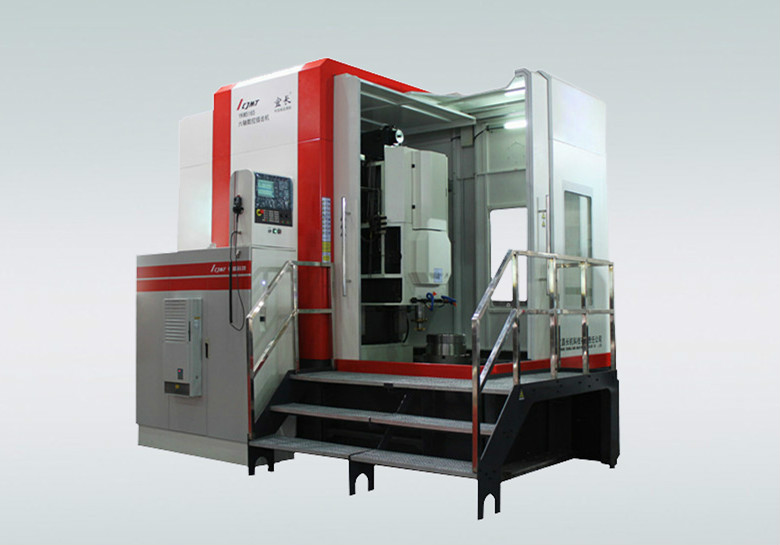

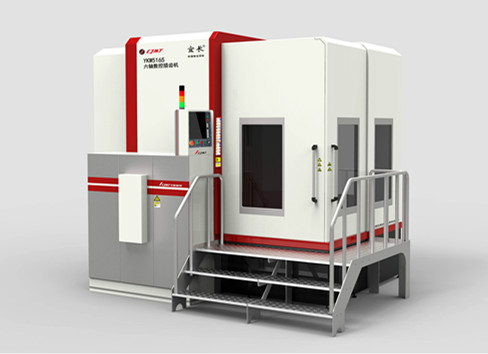

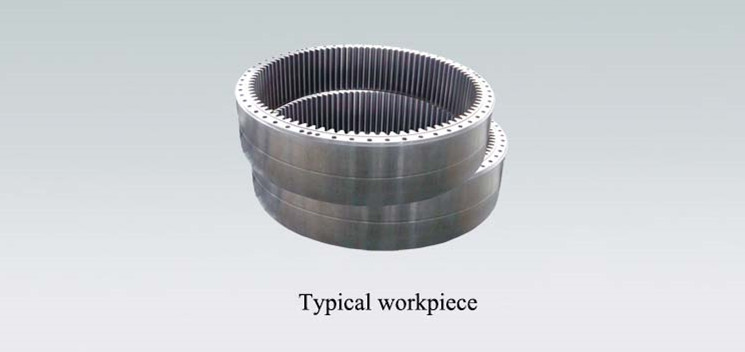

This kind of machine is suitable for cutting medium-sized internal or external columnar gears. It can setting the fixture to machining spur gear, helical gear and multiple gear at one time, and especially suitable for deep hole with internal gear.

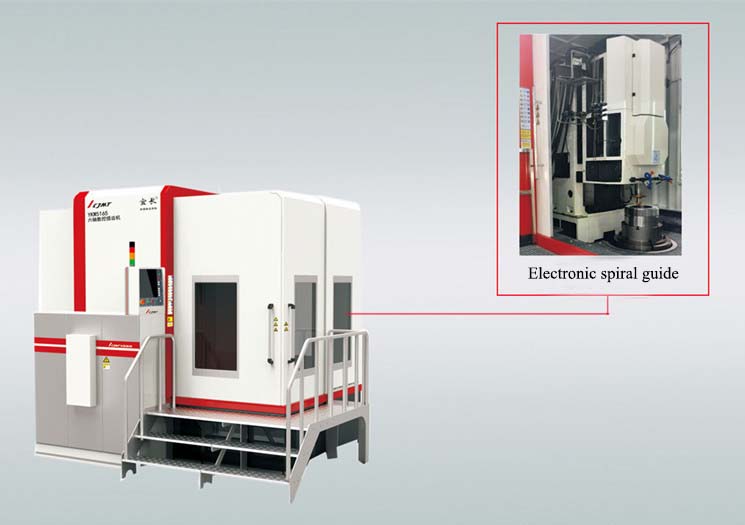

The machine is a multifunctional and fully automatic gear shaper which has 6 axes with the simultaneous movement of 4 axes. The machine has the functions of cutter head automatic lifting, stroke length automatic adjusting, automatic change internal cutting to external cutting, electronic helix guide, and auxiliary tool change. Main spindle of the cutter tool adopt hydrostatic structure and the worktable adopt rolling bearing structure.
|
Specifications
|
YKW5165X6
|
|
Max.diameter of external（mm）
|
650
|
|
Max.diameter of internal（mm）
|
800
|
|
Max.module（mm）
|
12
|
|
Max.face width（mm）
|
200
|
|
Max.stroke length（mm）
|
230
|
|
Stroke speed（str/min）
|
40~600
|
|
Cutter relieving（mm）
|
≥1
|
|
Axial slide travel range of cutter head
|
400
|
|
Adjusting amount of stroke position（mm）
|
-
|
|
Spindle diameter（mm）
|
100
|
|
Diameter of worktable（mm）
|
700
|
|
Sloping angle of worktable
|
-
|
|
Distance between axis of cutter spindle and worktable（mm）
|
-40~450
|
|
Distance between the nose of spindle and worktable surface（mm）
|
150~780
|
|
Total power（kw）
|
55
|
|
Total weight（Kg） approx.
|
14000
|
Note: The above mentioned parameters for your reference only. If have (any requires) Please contact us.
|
Standard Accessories
|
|
Numerical control system: 840D Siemens
|
|
Spindle frequency inverter: Schneider convertor
|
|
The hydraulic station: Outside
|
|
The cooling and chip conveyor: Outside
|
|
Centralized auto-lubrication: By intermissive
|
|
Electric cabinet: Outside
|
|
Criterion cutter adaptor: 2 pieces(Morse 5#)
|
|
Full cover
|
|
Accessory box
|
|
Machine sizing block
|
